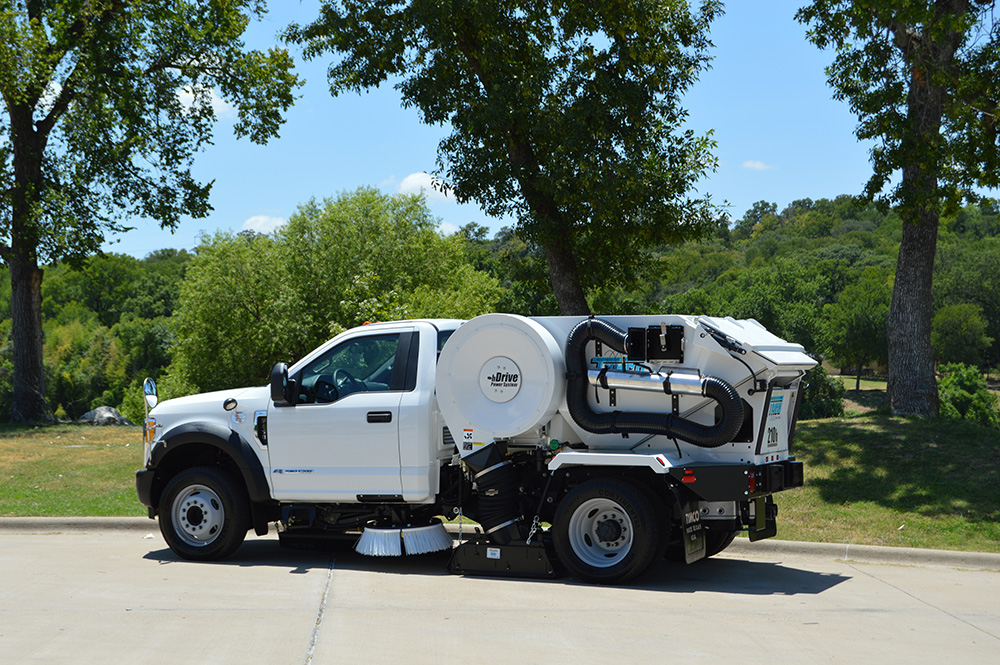

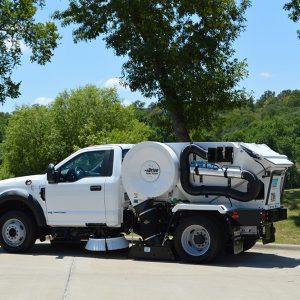

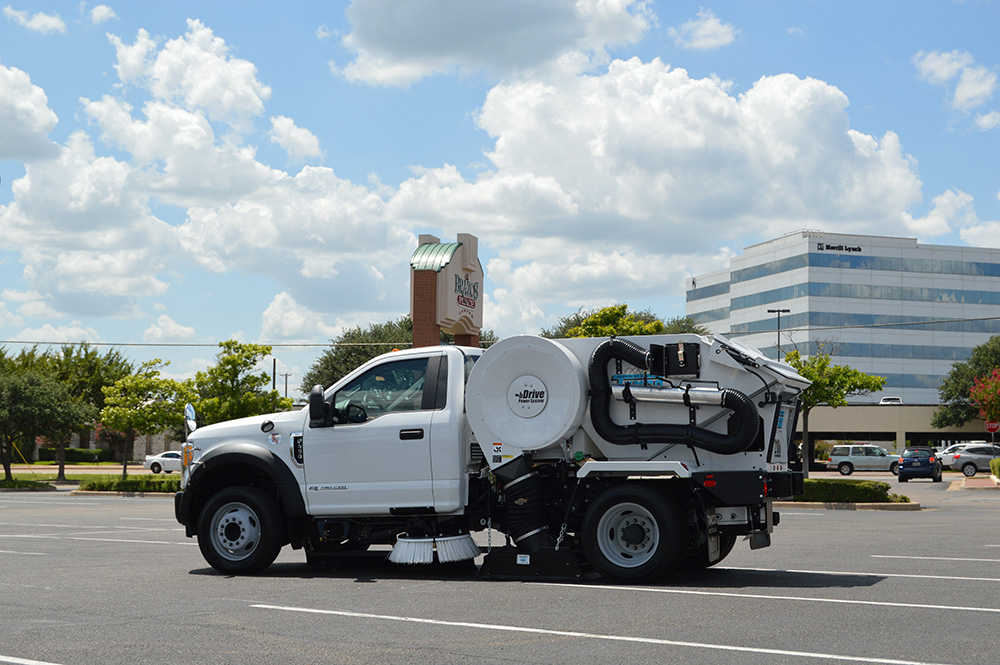

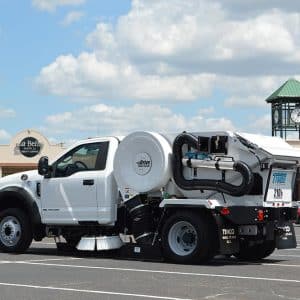

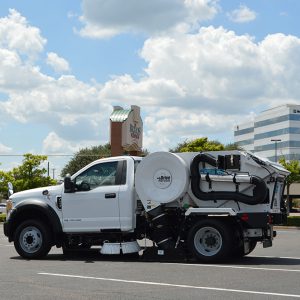

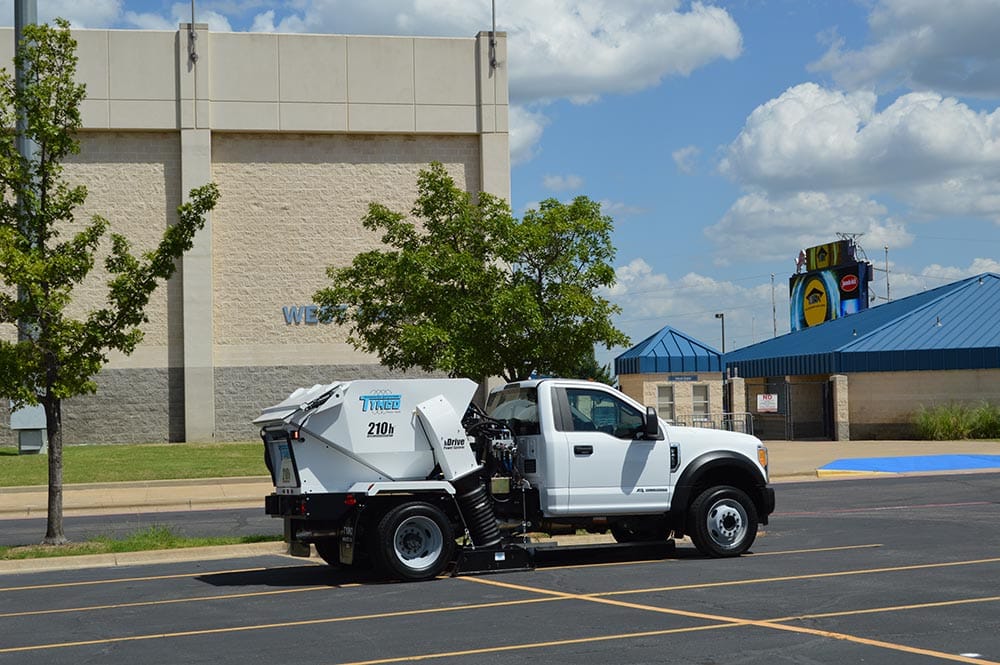

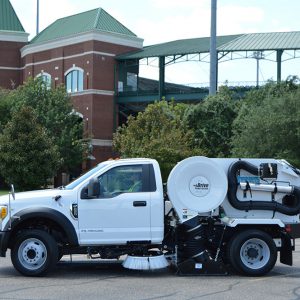

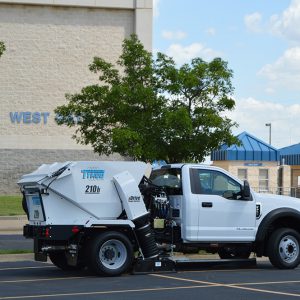

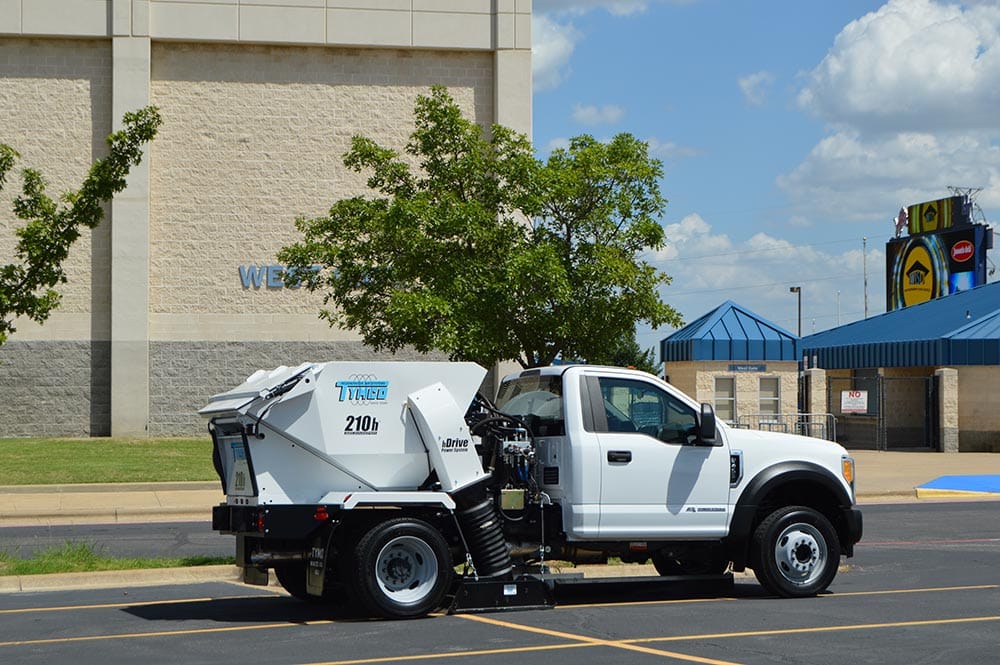

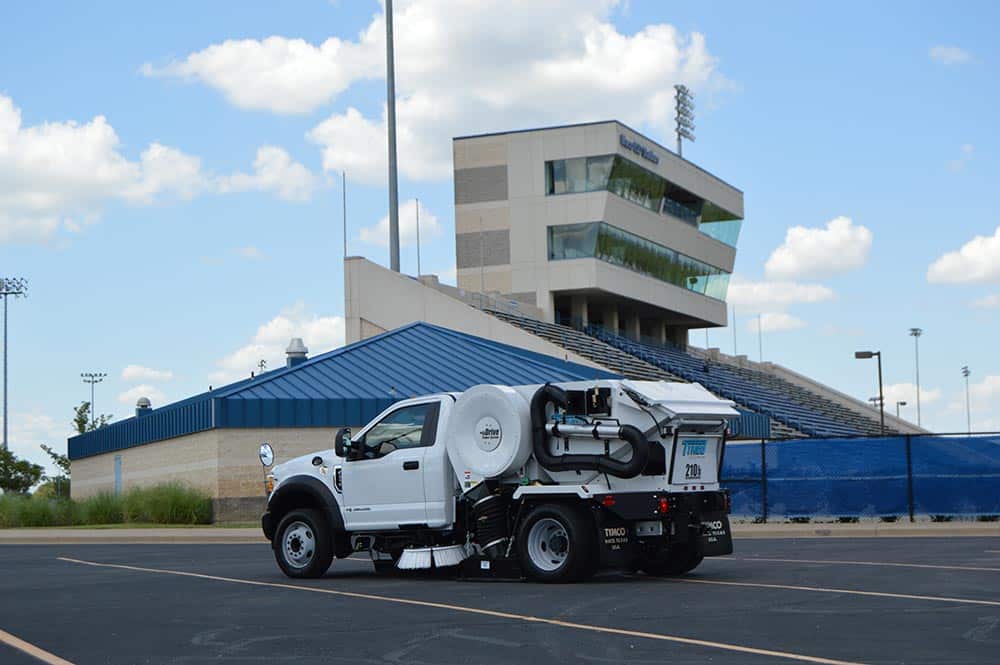

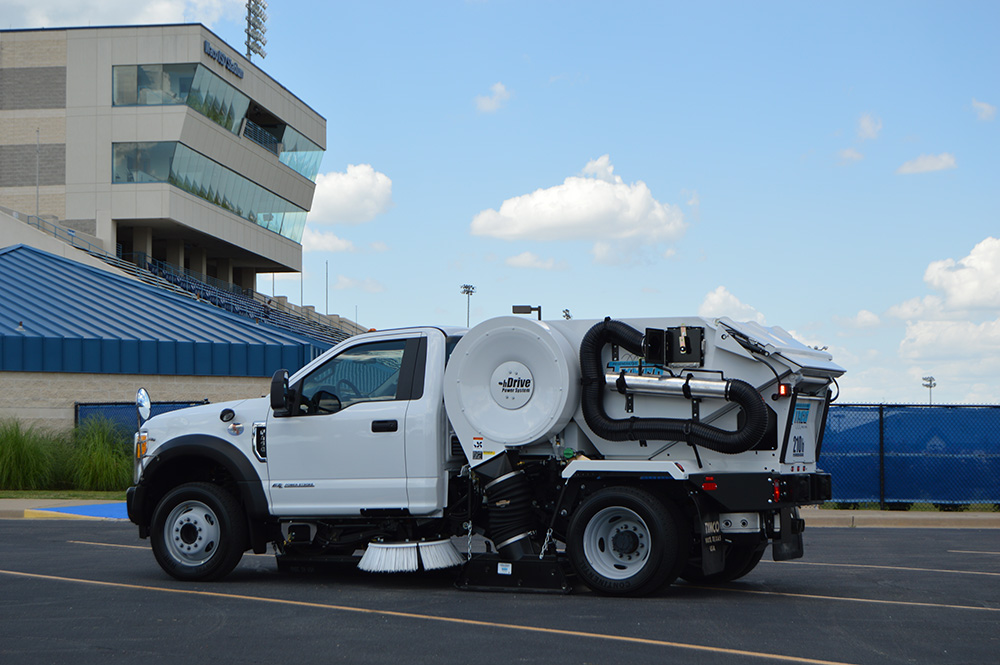

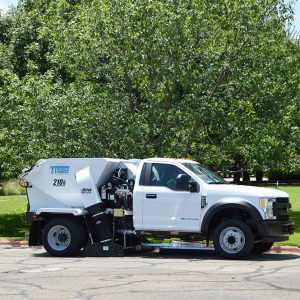

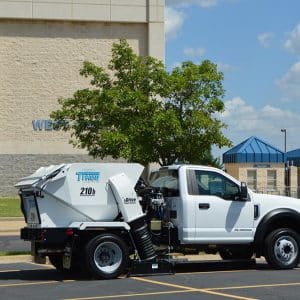

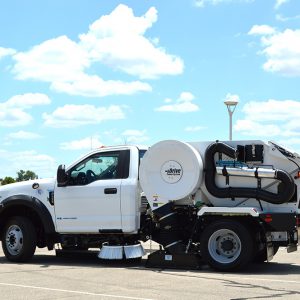

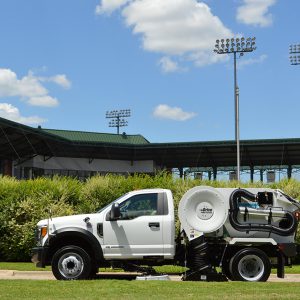

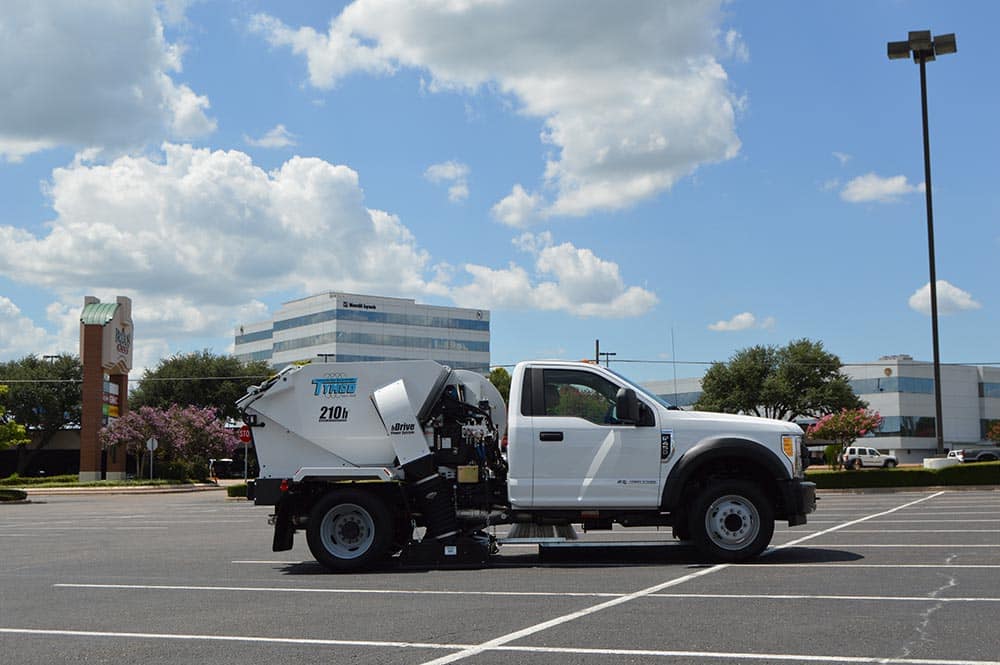

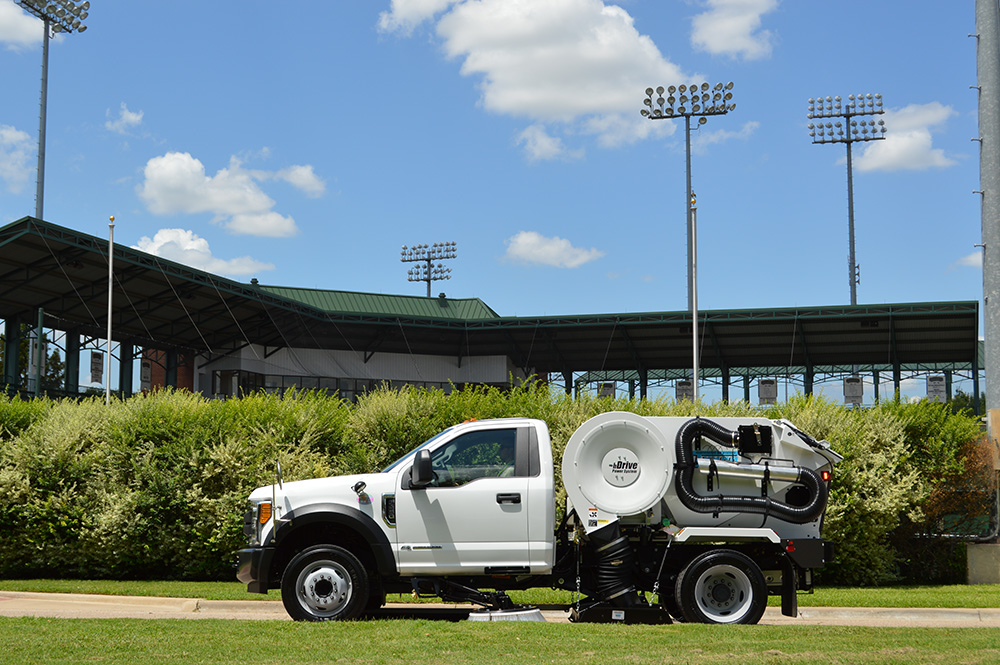

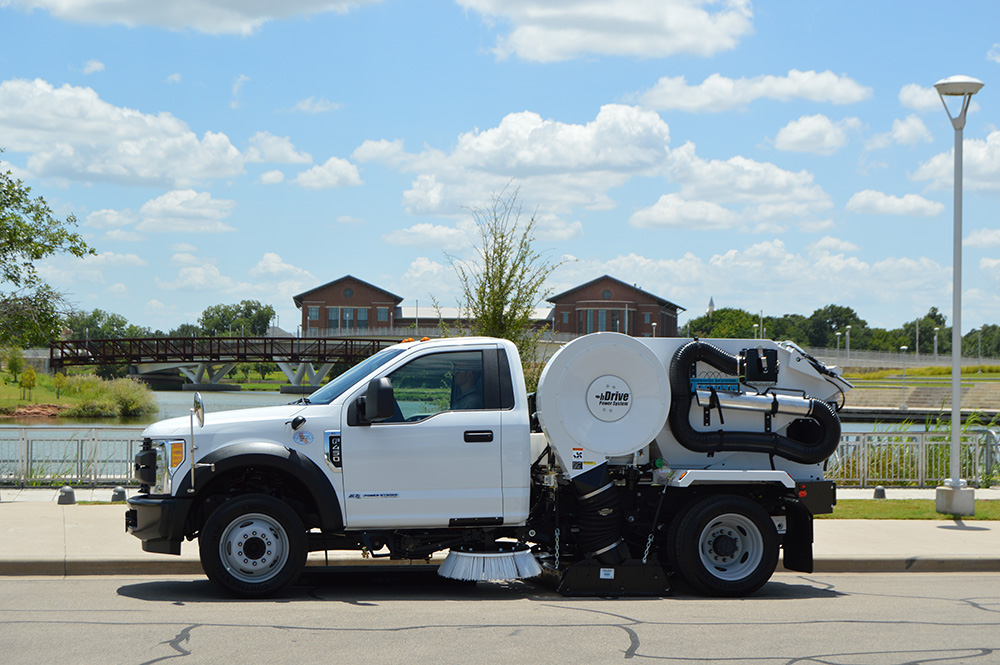

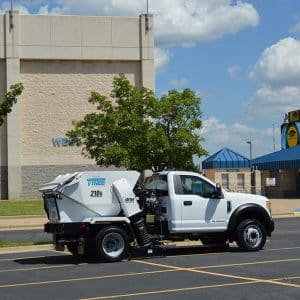

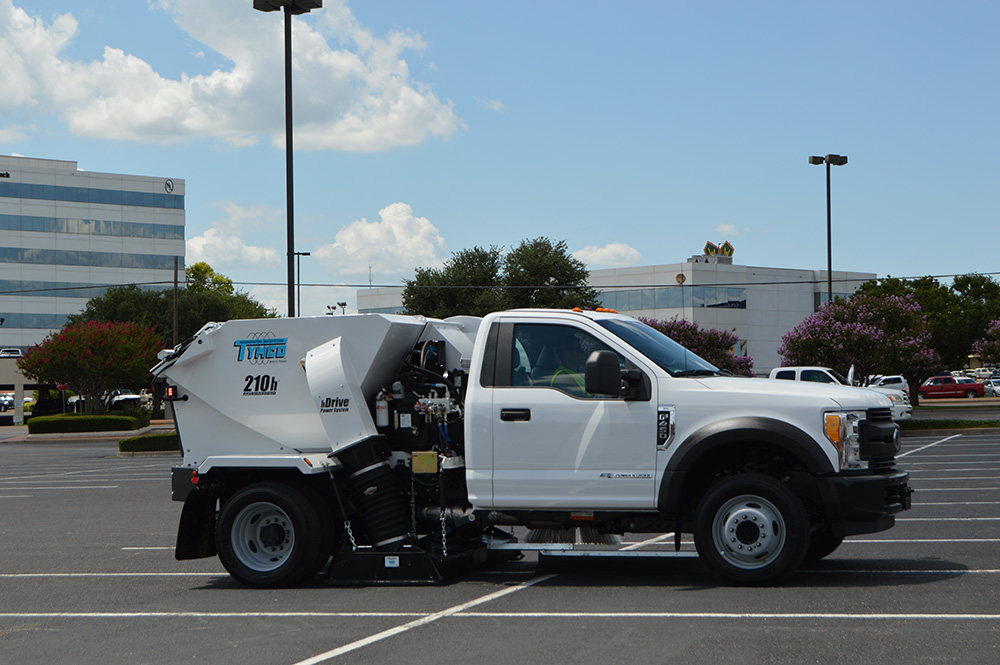

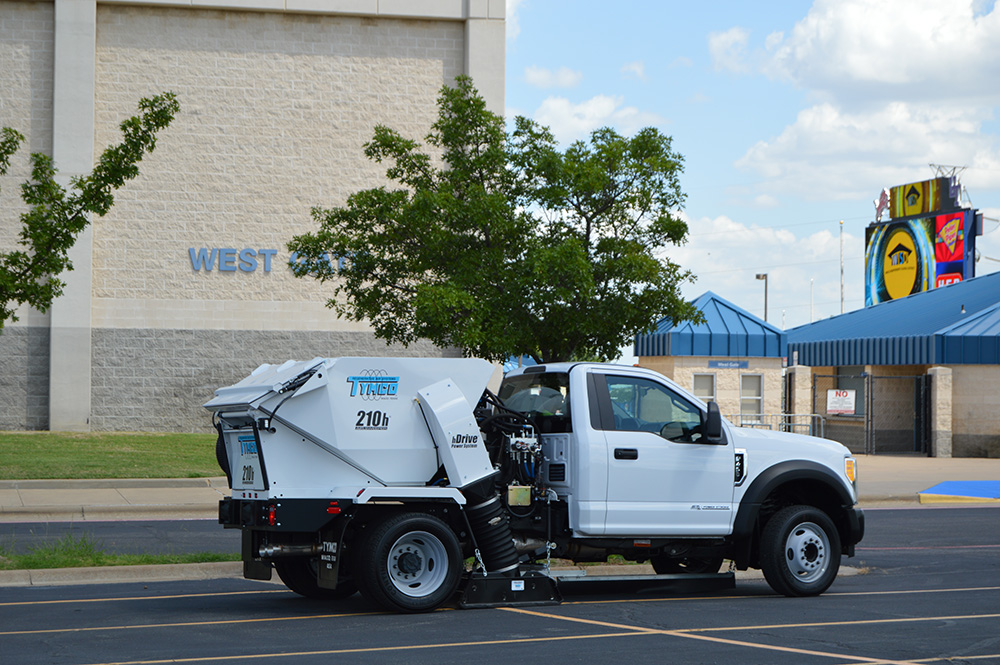

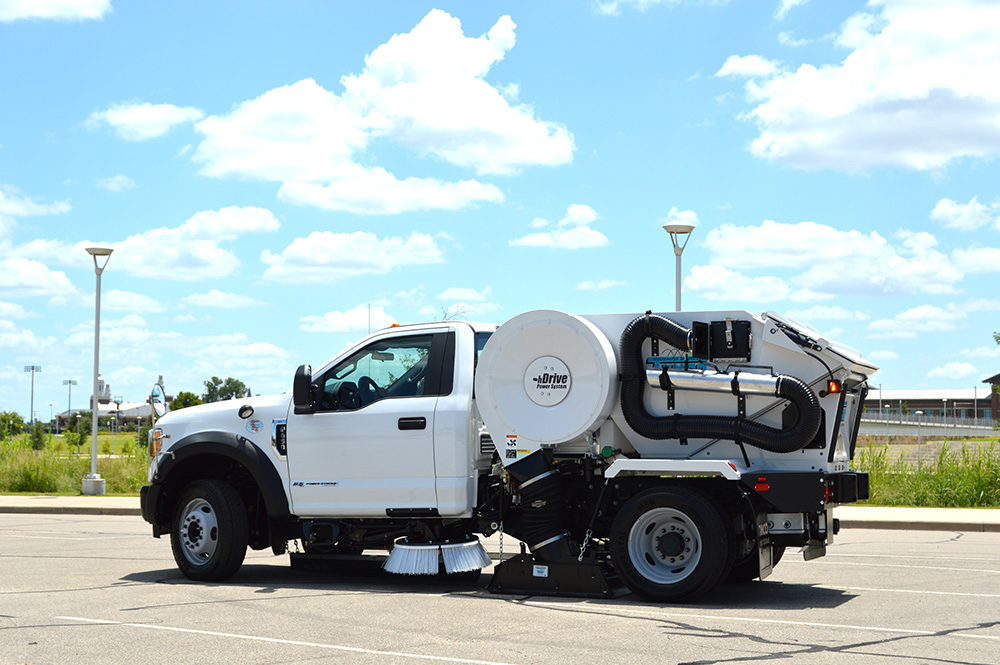

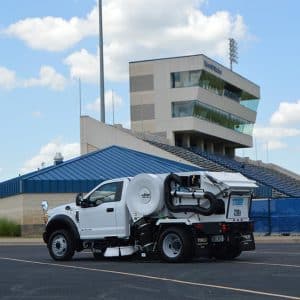

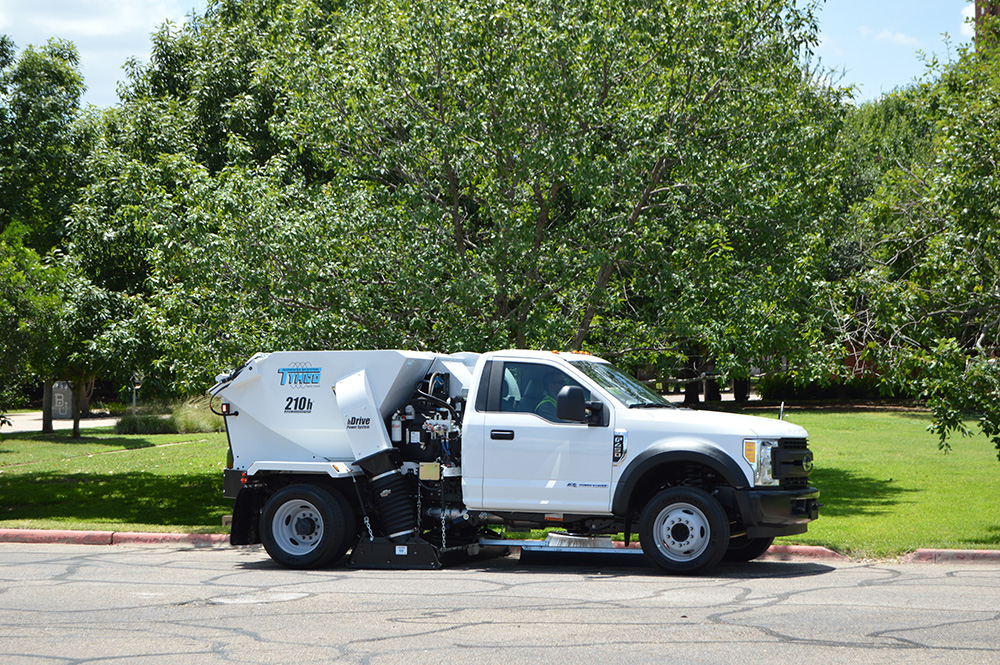

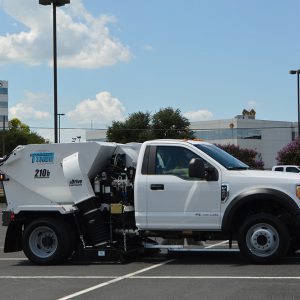

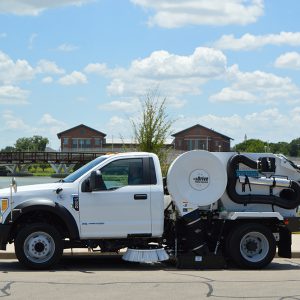

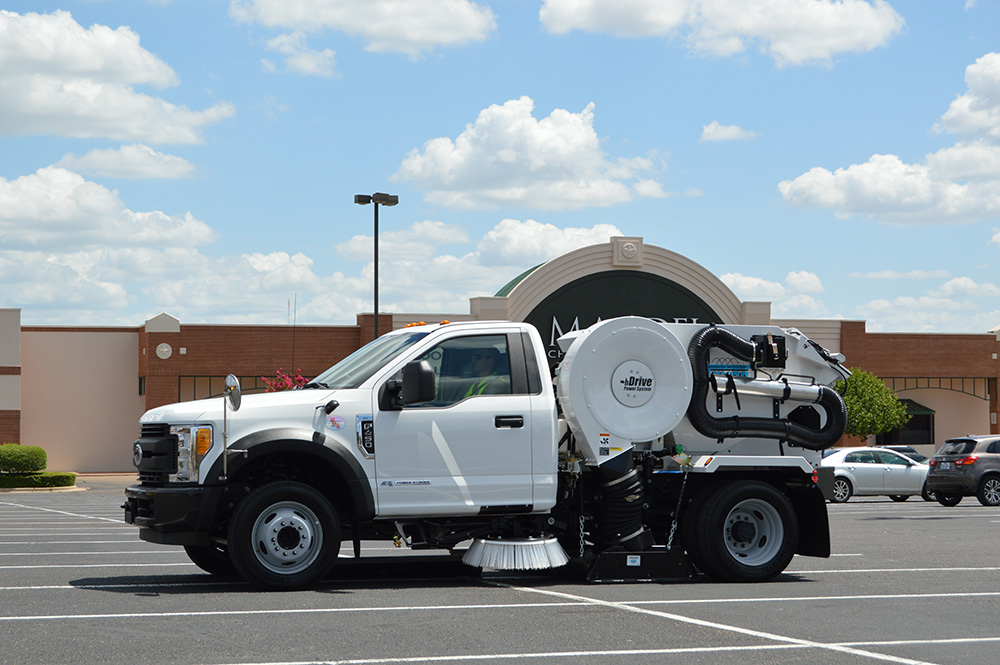

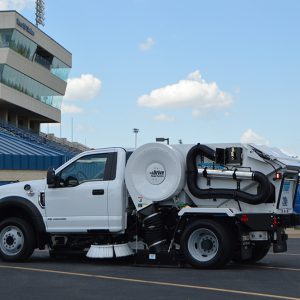

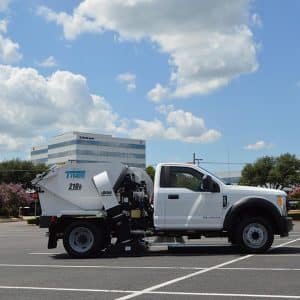

Model 210h® Parking Lot Sweepers

The TYMCO® Model 210h® parking lot sweeper is powered by the TYMCO hDrive®Power System. hDrive is an optimized hydraulic power system that gives Model 210h owners all the simplicity and low maintenance of sweeping without an auxiliary engine. The Model 210h delivers everything Model 210 owners have come to love about the TYMCO Regenerative Air System – air sweeping with a dual chambered pick-up head delivering a powerful air blast to the paved surface and centrifugal dust separation for low dust emissions.

It was important for the Engineering Team at TYMCO to design a single engine parking lot sweeper with the least amount of compromise on performance while continuing to maintain a high standard of reliability.

The performance features on the Model 210h are delivered by a True Regenerative Air System and a large gutter broom. Both of these features are powered by the hDrive Power System which were traditionally powered by an auxiliary engine on the Model 210.


In addition, components such as the pick-up head, skids, curtains, and brooms are shared with the Model 210, easing fleet integration for current Model 210 owners.

TYMCO Sweeper Design


TYMCO Sweepers are designed in way that truly reflects the culture at TYMCO.  When our engineers approach a challenge or a need on the sweeper, they work to develop straightforward solutions.  For example, all TYMCO Sweepers use True Regenerative Air.  This design delivers the simplest approach as well as the highest performance with the lowest downtime as compared to other sweeper technologies.

  • True Regenerative Air
  • Smart Gutter Broom
  • Easy Access to Components
  • Operator Friendly Design
  • High Productivity
  • Low Maintenance

More About TYMCO Sweeper Design

Features


Control Console

The Model 210h® control console utilizes lighted rocker switches for easier visibility when sweeping parking lots at night. From within the cab, the operator can control the blower, pick-up head, gutter broom, dust control water system, all warning lights and the pressure bleeder. The control console also includes an hour meter.

Pick-Up Head

The TYMCO Model 210h® heavy duty pick-up head incorporates full-width air blast and suction and is designed to work effortlessly with the TYMCO Regenerative Air System to pick up a wide variety of parking lot debris from leaves and trash to dirt, sand, and gravel. The Model 210h pick-up head comes standard with long-lasting Duo-Skids® which provide increased sweeping performance and longer wear.

Hopper

The Model 210h's powerful piggyback hopper dump cylinders lift the hopper up to 60 inches for dumping into dumpsters or containers commonly located near parking lots. These heavy duty dump cylinders allow the Model 210h to high dump even the heaviest of loads. A built-in safety strut is permanently attached to the hopper frame for easy accessibility when performing routine maintenance.

Gutter Broom

The 32” diameter Model 210h gutter broom removes debris from around parking lot islands, medians and parking bumpers. The innovative gutter broom provides excellent performance by automatically determining the “digging” pressure needed for different debris; therefore, owners get maximum gutter broom bristle life and sweeping performance.

If the gutter broom encounters an immovable object, it will automatically retract to avoid potential damage and return to the original position once the immovable object has been passed, all without intervention from the operator. The 210h mounted on a Ford F-450 has gutter broom options with poly-wafer, poly-digger and steel digger bristles.

Dust Control System

The Model 210h is the only single engine parking lot sweeper on the market with a high-efficiency centrifugal dust separator for maximum fine dust particulate separation which provides excellent dust control while using less water.

TYMCO’s Engineers take several aspects into account when designing for better dust control such as water nozzle design and placement, not just adding more water like other parking lot sweepers. The Model 210h has a water capacity option of up to 30 gallons which provides hours of sweeping while maintaining excellent dust control.

hDrive® Power System

Ford Super Duty trucks offer the class-exclusive live-drive power takeoff (PTO) provision. Because it is integrated into the transmission’s design, integrating the TYMCO hDrive Power System with this PTO is a simpler, more robust design and requires fewer truck modifications than a belt-driven hydraulic system design. The live-drive PTO utilizes an output gear linked directly to the engine crankshaft that delivers power anytime the engine is running, whether you’re in motion or at a stop, which is perfect for an application like parking lot sweeping.

hDrive has also presented Model 210h owners a solution to noise pollution restrictions by offering inherent sound reductions as compared to the Model 210 when sweeping in normal conditions.

Blower Wheel

The Model 210h is the only single engine parking lot sweeper that utilizes a super-efficient aluminum alloy blower that is self-cleaning and reduces fuel consumption because of its lightweight design requiring less horsepower.

The blower is designed to work with the TYMCO Regenerative Air System to both push and pull air which delivers even greater sweeping performance. The Model 210h blower is available with an optional natural rubber coating providing maximum wear against abrasive debris.

Truck Types


Ford F-450 or F-350

Options


Gutter Broom – Right in lieu of standard left

The TYMCO Model 210h® polypropylene-wafer gutter broom assists in removing debris from around parking lot islands, medians and parking bumpers with a 32" diameter gutter broom with in-cab controls. Steel digger gutter brooms are also available providing for more versatile cleaning and extended gutter broom bristle life.

Auxiliary Hand Hose

For cleaning in tight areas commonly found in parking lots and garages such as around dumpsters and containers. The 10’ hand hose is 6” in diameter and comes with a 36” aluminum nozzle. An additional 10’ hose is available with a quick coupler for even more versatile cleaning.

Camera/Monitor System

Parking lots and garages are full of support beams, signs, light poles, trees and many other objects that need to be seen when backing up. The rear view back-up camera with in-cab display allows the operator to view the area behind the Model 210h while backing up providing additional safety and peace-of-mind to both Model 210h operators and owners. Additional cameras are also available to view the pick-up head and gutter brooms.

Backpack Blower Storage Box

Every parking lot has sidewalks that need to be cleaned. This storage box provides a place for the Model 210h operator to store a backpack blower to clean off sidewalks before sweeping the lot.

Stainless Steel Hopper

For maximum corrosion and salt spray resistance, all hopper body sheets as well as the hopper screen are fabricated with low carbon, high chrome stainless steel. Stainless steel bolt-on blower housing, dust separator and hopper drain are also available.

Parking Lot Sweeping & The Environment


The Model 210h® delivers great sweeping performance while reducing routine maintenance. By replacing the auxiliary engine with the hDrive Power System, TYMCO has removed the need to service the auxiliary engine air filters, fuel filters, oil and oil filters and in the process, have manufactured a more environmentally friendly sweeper. Other environmental features include:

  • Sound Reduction
  • Doing More With Less
  • Water Efficiency

Model 210h® Regenerative Air Sweeper® Specs


Hydrostatic Drive/Conventional Cab Chassis

Specs

Hydraulics Hdrive® Power System

  • Main Pump Type - Piston Pump
  • Reservior Capacity - 17 gal (64 L)
  • Main System Pressure - 3500 psi (24, 132 kPA)
  • Main Pump Drive - Direct drive from transmission PTO, Operates blower, dump door, and pick-up head
  • Broom Pump Type - Vane Pump
    • Belt driven from blower shaft
  • Filter - 10 Micron in-line
  • Hydraulic oil - Extended life
  • Cooler - Air to oil w/ thermostatically controlled electric fan
  • Hydraulic level/temerature shutdown system
  • Hydraulic oil filter restriction indicator
  • Hydraulic oil sight/temerature gauge

Blower

  • Aluminum alloy, high volume, open face turbine
  • Purpose - Creates air blast and suction
  • Bearings - Anti-friction
  • Housing - Abrasion resistant, replaceable liner
  • Drive - Hydraulic direct drive

Dust Separator

  • Type - Cyclonic, multipass, centrifugal separation
  • Cylindrical area - 20 x 22.5 in (508mm x 1549mm)
  • Location - Adjacent to hopper
  • Particulate removal achieved through 22.5 in (572 mm) skimmer slot into skimmer hood
  • Inspection/cleanout port w/ extended plug handle

Hopper

  • Capacity (volumetric) - 2.4 yd3 (1.83 m3)
  • Capacity (usable) - 2.1 yd3 (1.61 m3)
  • Construction - Welded steel plate
  • Dump door size - 52 x 23 in (1321 x 584 mm)
  • Dump door hydraulically opened/closed
  • Dumping method - Hydraulic with tilt up
  • Dumping height - 60 in (1524 mm)
  • Dumping clearance height - 144 in (3645 mm)

Pick-Up Head

  • Type - Dual chamber
  • Function - Delivers air blast and suction chamber
  • Width (inside dimension)- 78 in (1981 mm)
  • Pick-up head area - 2028 in2 (1.31 m2)
  • Suspension - 4 springs, 2 drag links
  • Skids - DUO-SKIDS®, long life carbide
  • Suction hose diameter - 12 in (305 mm)
  • Pressure hose diameter - 12 in (305 mm)
  • Pressure bleeder - Integral for leaf/light material pickup
  • Reverse pick-up head system
  • Reverse pick-up head system

Gutter Broom, Left, Patented

  • Standard equipment includes floodlight and parabolic mirror
  • Drive - Constant speed non-reversible hydraulic motor
  • Adjustment - Adjustable for down pressure, pattern and wear
  • Down pressure - Automatically adjusts to requirement
  • Flexibility - All directions, Integral anti-damage "swing away" relief valve
  • Broom - Poly wafer 36 in (914 mm)

Controls

  • Inside cab (lighted)
    Pick-up head, gutter broom, blower on/off (2 speeds - low/high), all safety lights, hour meter, pressure bleeder
  • Outside cab - Dump
  • BlueLogic® Control System
    Multiplexed electrical control module which provides intelligent safety features and assists in sweeper troubleshooting with LED diagnostics. Specific to the Model 210h, BlueLogic communicates with the truck to engage PTO, maintain blower at constant speed and monitor the hydraulic level/temperature shutdown system, auto sweep interrupt (ASI)

Safety/Warning Devices

  • Back-up alarm
  • Alternating LED rear flashers (2)
  • BlueLogic® control system provides several safety interlocks, i.e. lifting the gutter broom when sweeper is placed in reverse, turning off blower when hopper is raised/hopper door is opened and shutting down sweeper when ground speed or engine speed exceed maximum allowable values (defaults are 18 mph or 2100 RPM).
  • Hopper safety prop

Optional Equipment

  • Abrasion protection package
  • Air purge, dust control system
  • Amber beacon light
  • Auxiliary fuse panel
  • Auxiliary hand hose 6 in dia. (152 mm)
  • Backpack blower storage box
  • Camera/monitor system
  • Dust control system - 30 gal (113 L)
  • Gutter broom - Right (in lieu of left)
    • Broom - Poly or steel digger 32 in (812.8 mm) (Ford F-450 only)
  • Hopper drain system
  • Hopper slide-out screen
  • Light bar, cab mounted, LED
  • Magnet, front bumper mounted, light duty
  • Rubber lined blower
  • Stainless steel options:
    • Hopper:
      -Hopper weldment
      -Hopper door
      -Inspection door
      -Skimmer hood
      -Slide-out hopper screen
  • Blower housing
  • Dust separator
  • Hopper drain
  • Hopper Inspection door
  • Hopper screen
  • Auxiliary hand hose hardware
  • Paint color (other than TYMCO standard white)

Special options are available for your individual requirements. Contact your local dealer or TYMCO.

Chassis Available

  • Ford F-450
  • Ford F-350

Updated: 08/21/2017
