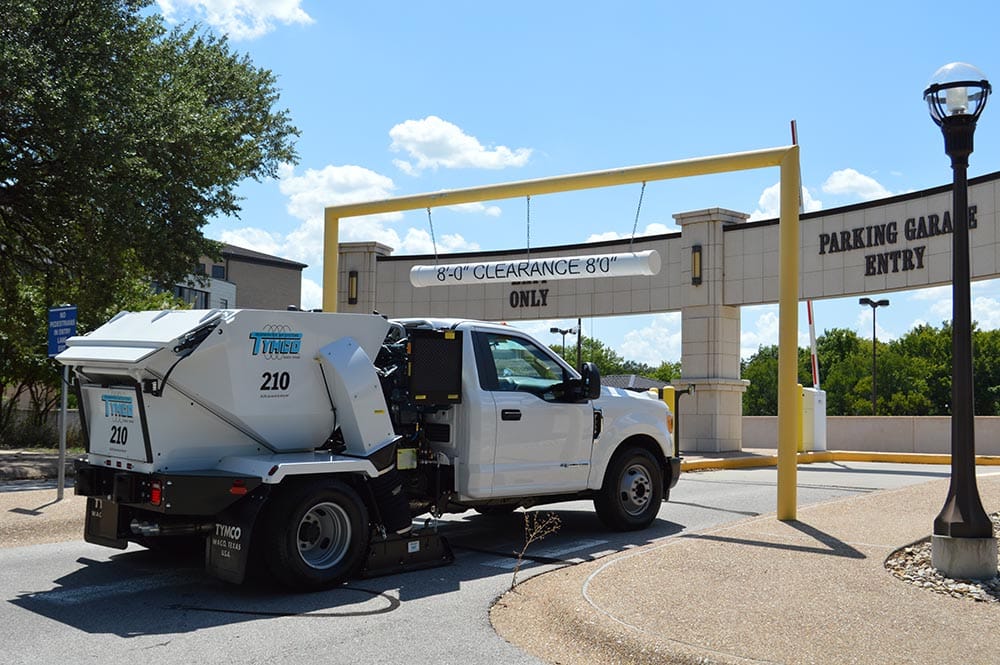

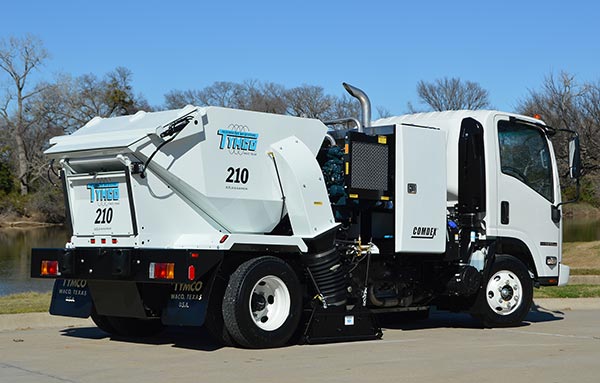

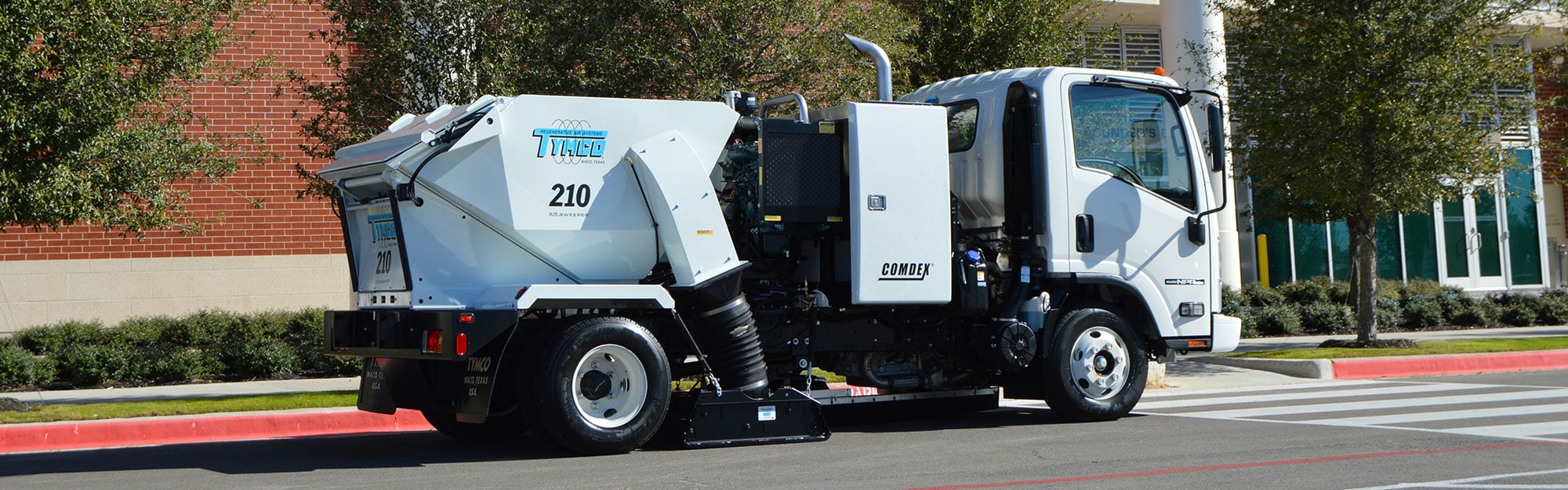

Model 210® Parking Lot Sweeper

The TYMCO Model 210® is the parking lot sweeper with both power and maneuverability that you need to get the job done. With a height clearance as low as 6’6” and a large 2.4 cubic yard hopper, the Model 210 is ideal for tackling a downtown parking garage or the largest of parking lots.

When other parking lot sweepers are too large, and small outdoor ride-on or walk-behind sweepers have proven inefficient, time-consuming and maintenance intensive, the Model 210 is your sweeper.


TYMCO Sweeper Design


TYMCO Sweepers are designed in way that truly reflects the culture at TYMCO.  When our engineers approach a challenge or a need on the sweeper, they work to develop straightforward solutions.  For example, all TYMCO Sweepers use True Regenerative Air.  This design delivers the simplest approach as well as the highest performance with the lowest downtime as compared to other sweeper technologies.

  • True Regenerative Air
  • Smart Gutter Broom
  • Easy Access to Components
  • Operator Friendly Design
  • High Productivity
  • Low Maintenance

More About TYMCO Sweeper Design

Features


Pick-Up Head

The TYMCO Model 210® heavy duty pick-up head incorporates full-width air blast and suction and is designed to work effortlessly with the TYMCO Regenerative Air System to pick up a wide variety of parking lot debris from leaves and trash to heavy dirt, sand and rocks. The Model 210 pick-up head comes standard with long-lasting Duo-Skids® which provide increased sweeping performance and longer wear.

Hopper

The Model 210's powerful piggyback hopper dump cylinders lift the hopper up to 60 inches for dumping into dumpsters or containers commonly located near parking lots and garages. These heavy duty dump cylinders allow the Model 210 to high dump even the heaviest of loads. A built-in safety strut is permanently attached to the hopper frame for easy accessibility when performing routine maintenance.

Gutter Broom

The 32” diameter Model 210 gutter broom option removes debris from around parking lot islands, medians and parking bumpers. An optional tilt adjuster allows you to reach down into the deepest curbs or gutters. The innovative gutter broom provides excellent performance by automatically determining the “digging” pressure needed for different debris; therefore, owners get maximum gutter broom bristle life and sweeping performance. If the gutter broom encounters an immovable object, it will automatically retract to avoid potential damage and return to the original position once the immovable object has been passed, all without intervention from the operator.

Dust Control System

The Model 210 is the only parking lot sweeper on the market with a high-efficiency centrifugal dust separator for maximum fine dust particulate separation which provides excellent dust control while using less water. TYMCO’s engineers take several aspects into account when designing for better dust control such as water nozzle design and placement, not just adding more water like other parking lot sweepers. The Model 210 has a water capacity option of up to 102.5 gallons which provides hours of sweeping while maintaining excellent dust control.

TYMCO's inherent design for conserving water while providing excellent dust control allows the Model 210 to pass the strict South Coast Air Quality Management District (AQMD) Rule 1186 standard for excellent dust and PM10 control.

Power Unit

The Model 210 is powered by a turbocharged 56 horsepower Kubota auxiliary engine. This engine powers all hydraulic functions through a gear driven pump and directly belt drives the blower. The lightweight aluminum alloy blower that drives the TYMCO Regenerative Air System only requires a modest amount of horsepower; therefore TYMCO’s engineers designed the Model 210 around a smaller, more fuel efficient auxiliary engine.

Blower Wheel

The Model 210 is the only parking lot sweeper that utilizes a super-efficient aluminum alloy blower that is self-cleaning and reduces fuel consumption because of its lightweight design requiring less horsepower.

The blower is designed to work with the TYMCO Regenerative Air System to both push and pull air which delivers even greater sweeping performance. The Model 210 blower is available with an optional natural rubber coating providing maximum wear against abrasive debris.

Truck Types

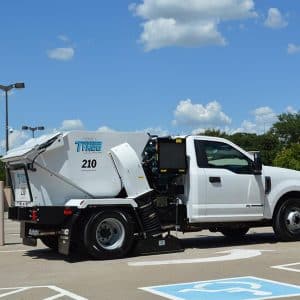

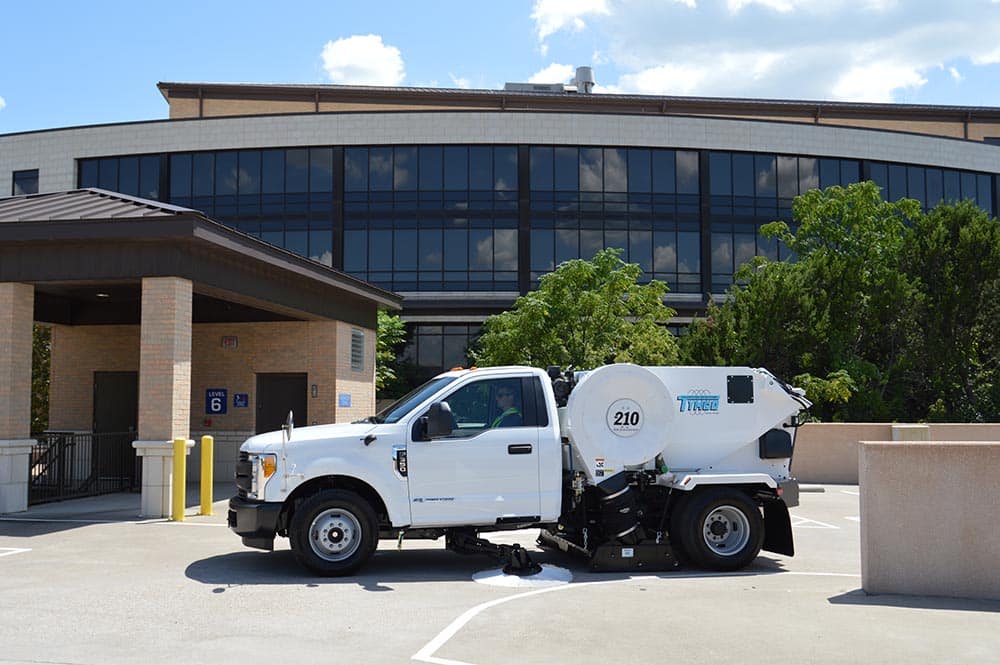

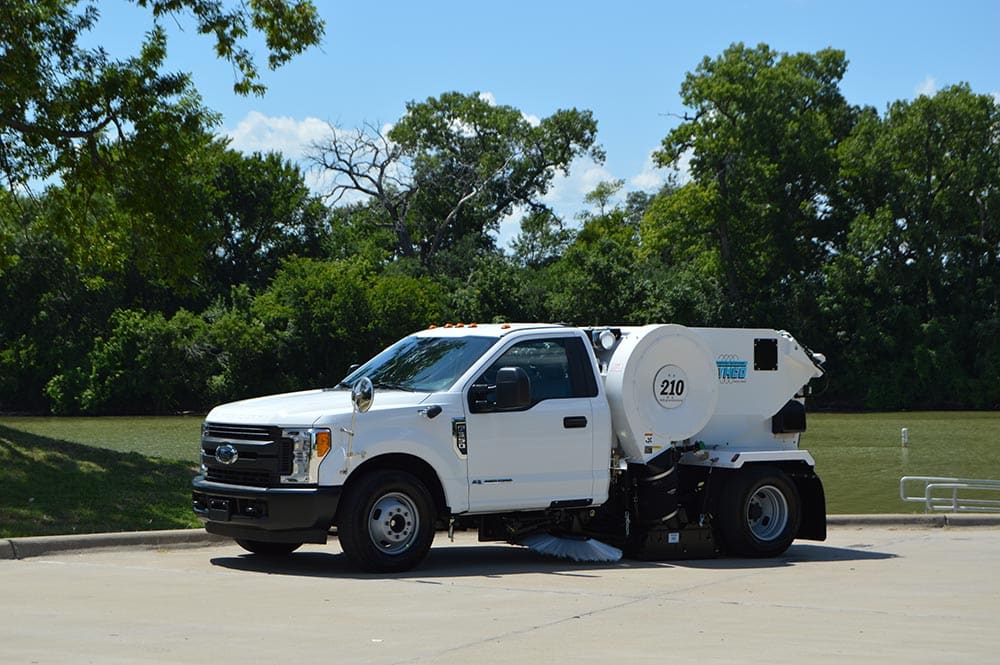

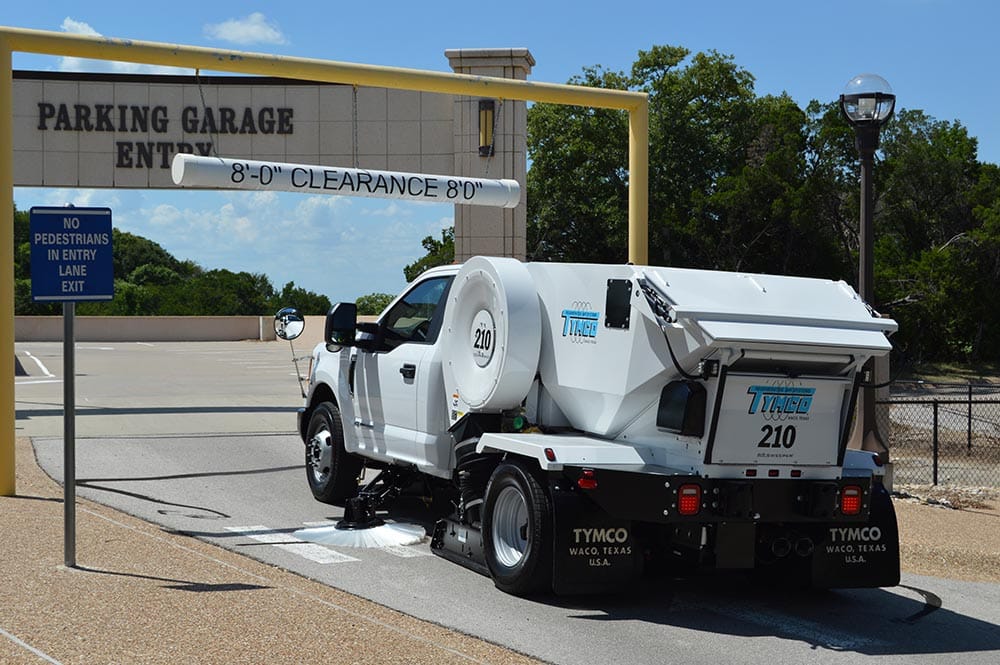

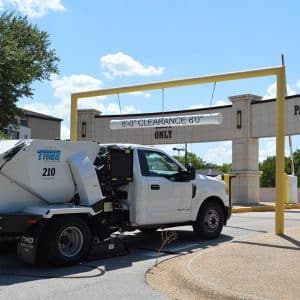

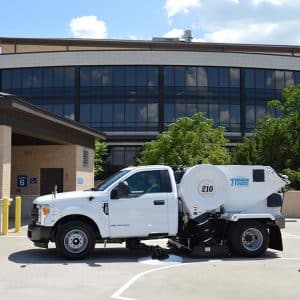

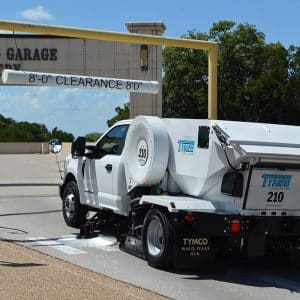

Conventional

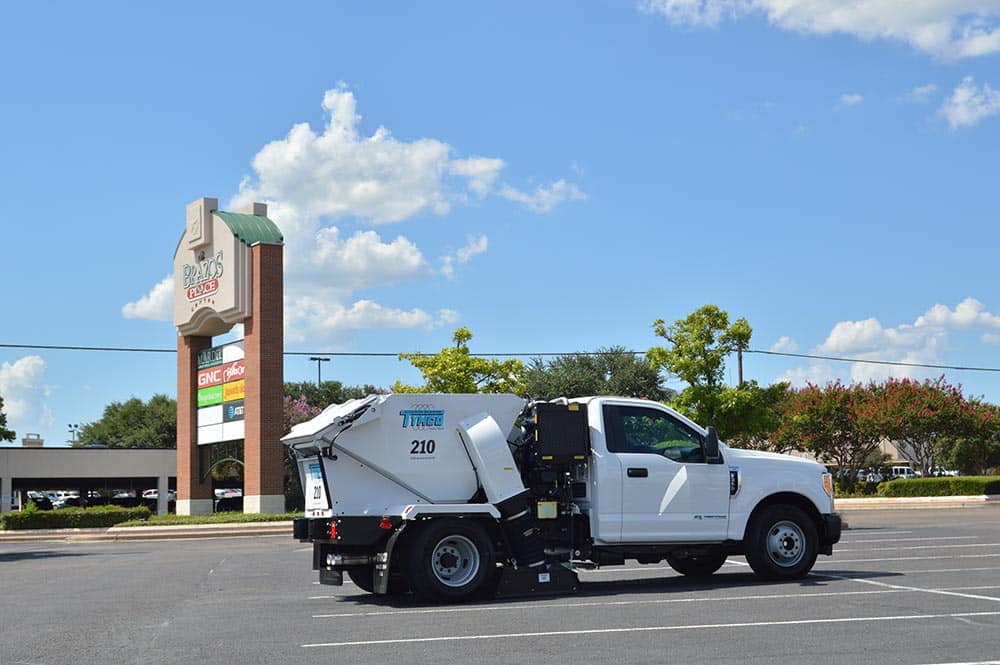

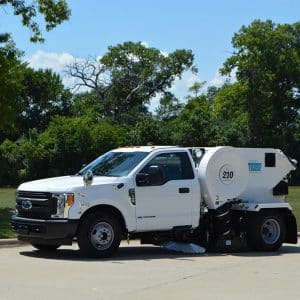

Ford F-450, F-350, or Chevrolet C3500-HD

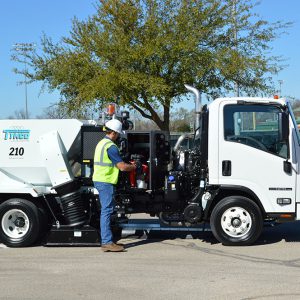

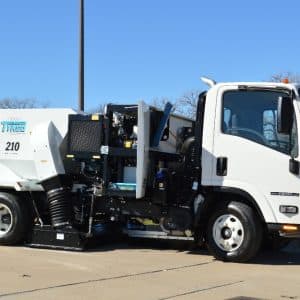

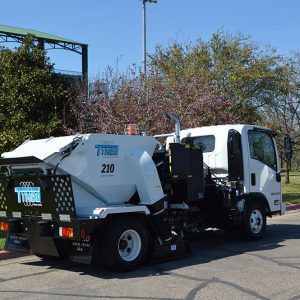

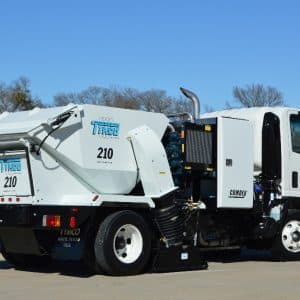

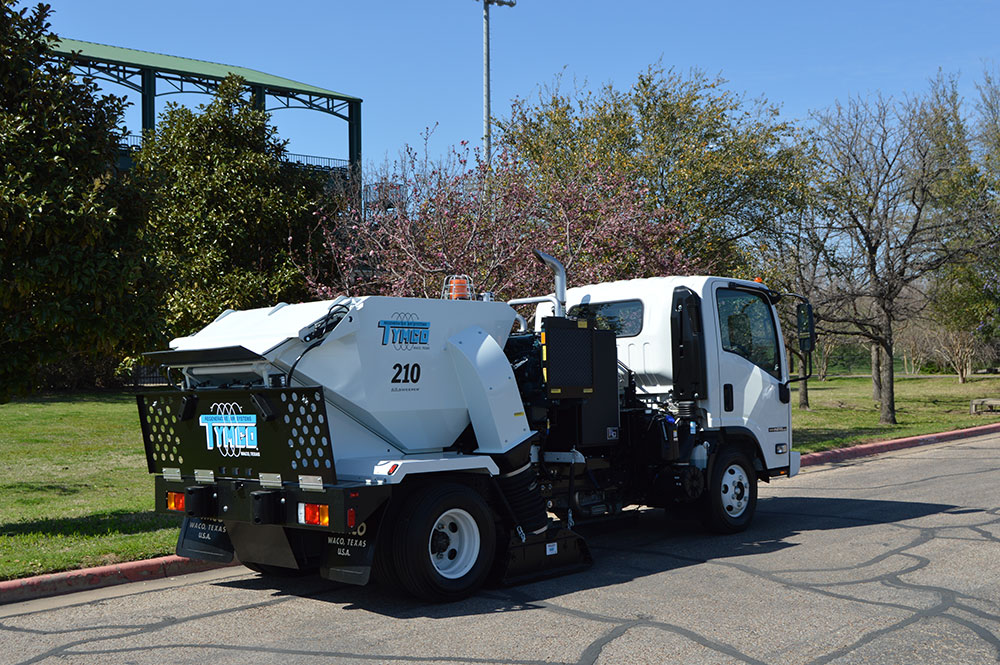

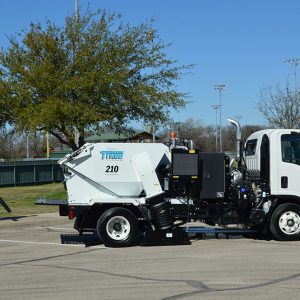

Cabover

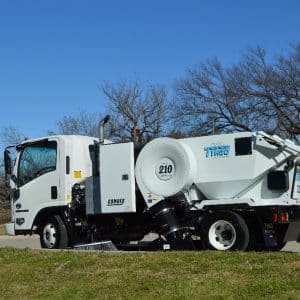

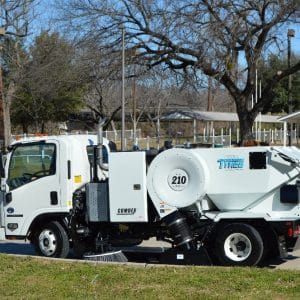

Isuzu NPR or NPR-HD

Options


Gutter Broom – Right in lieu of standard left or Twin

The TYMCO Model 210® polypropylene-wafer gutter broom assists in removing debris from around parking lot islands, medians and parking bumpers with a 32" diameter gutter broom with in-cab controls. Steel digger gutter brooms are also available providing for more versatile cleaning and extended gutter broom bristle life.

Gutter Broom Tilt Adjuster – Left, Right or Twin

The gutter broom tilt adjuster uses in-cab controls to adjust the gutter broom to the pitch of the surface being swept. The deepest curbs or gutters along parking islands, medians or parking bumpers are no challenge when your Model 210’s gutter brooms are equipped with tilt adjusters.

Auxiliary Hand Hose

For cleaning in tight areas commonly found in parking lots and garages such as around dumpsters and containers. The 10’ hand hose is 6” in diameter and comes with a 36” aluminum nozzle. An additional 10’ hose is available with a quick coupler for even more versatile cleaning.

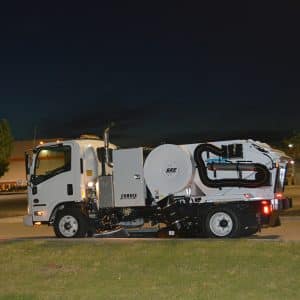

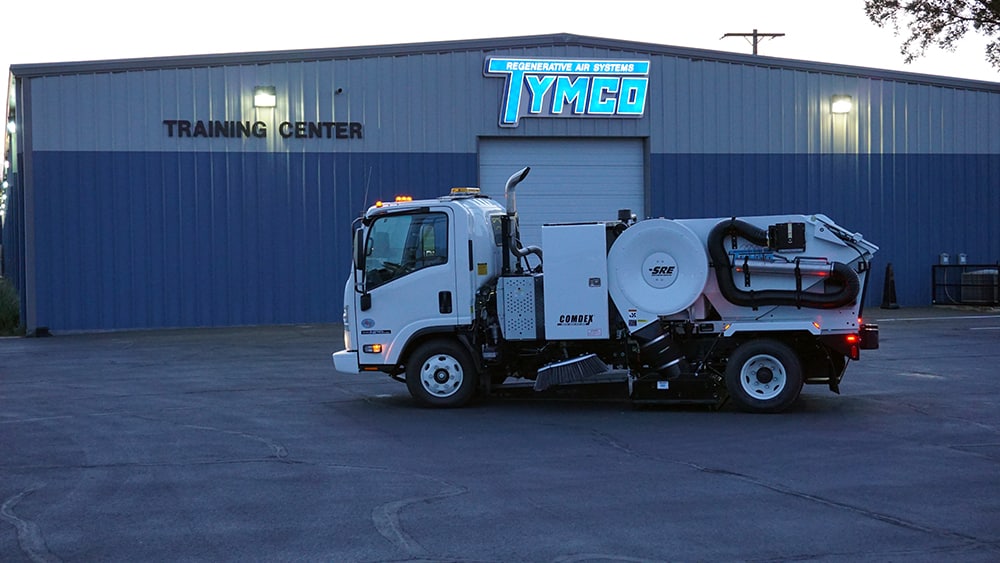

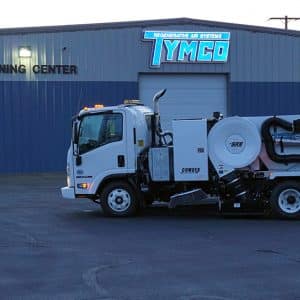

Sound Reduction Engineering (SRE) Package

The Sound Reduction Engineering (SRE) Package allows the Model 210 to sweep parking lots where only truck engine noise levels are desirable. SRE isolates various noise sources on the sweeper and addresses those areas through elimination or redesign. Sweeping parking lots and garages located near residential areas with noise pollution restrictions are not a problem when your Model 210 is equipped with SRE.

Camera/Monitor System

Parking lots and garages are full of support beams, signs, light poles, trees and many other objects that need to be seen when backing up. The rear view back-up camera with in-cab display allows the operator to view the area behind the Model 210 while backing up providing additional safety and peace-of-mind to both Model 210 operators and owners. Additional cameras are also available to view the pick-up head and gutter brooms.

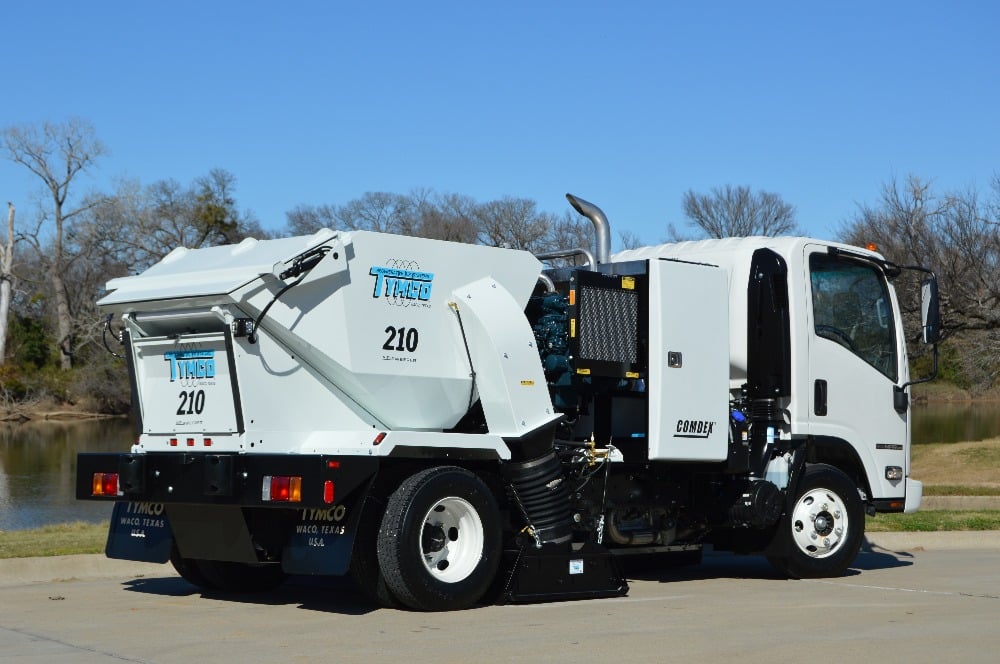

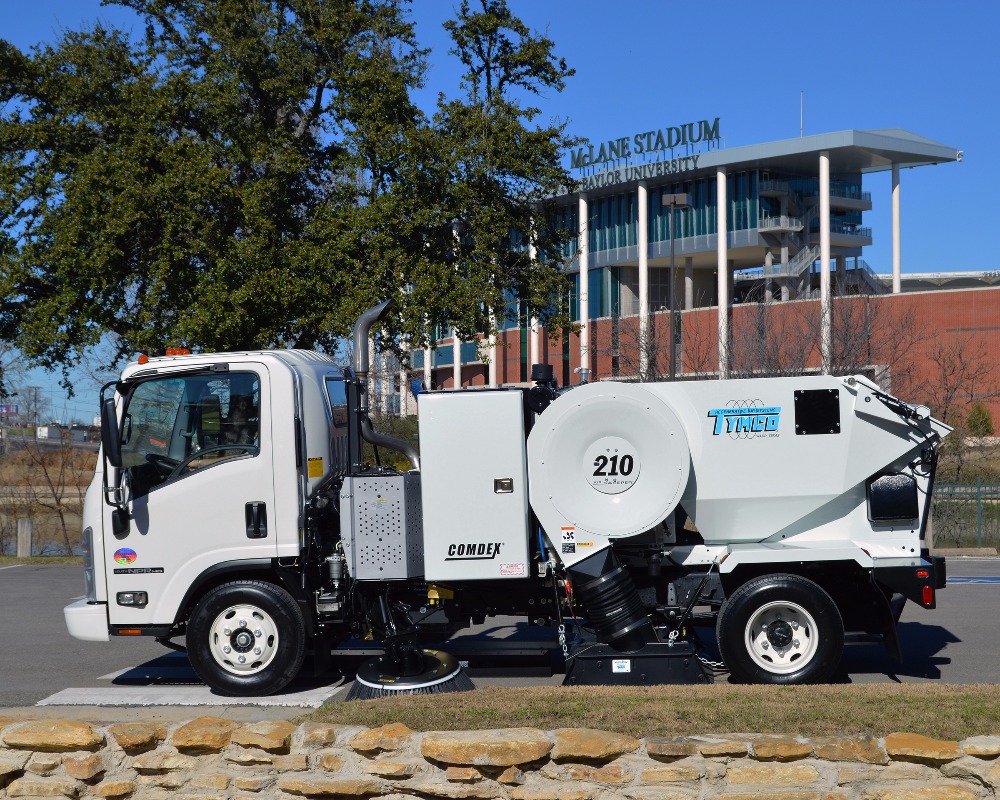

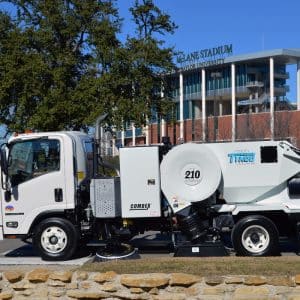

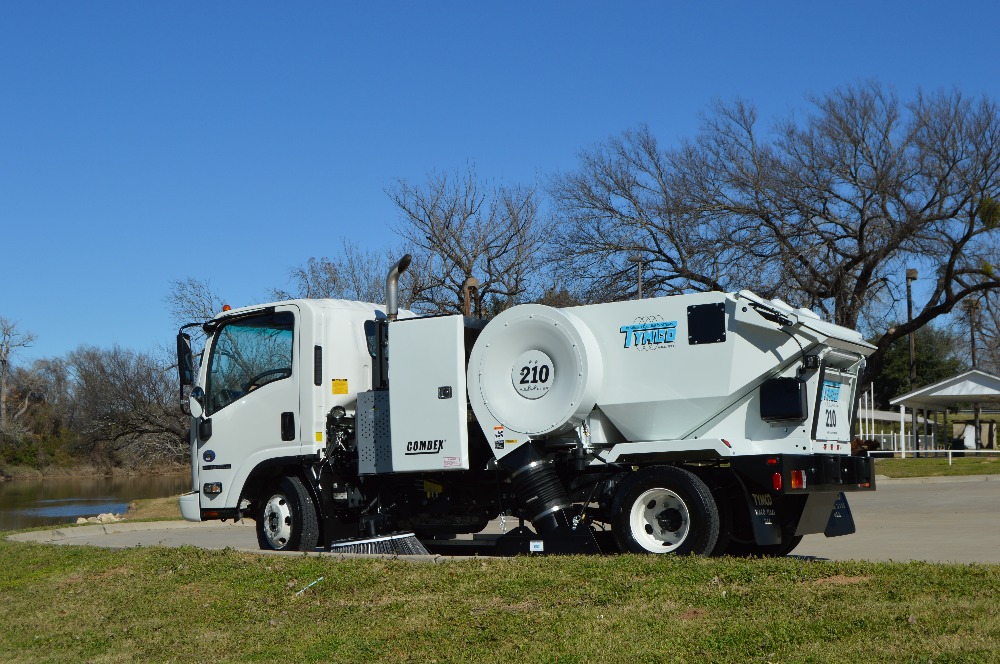

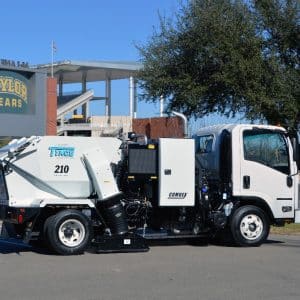

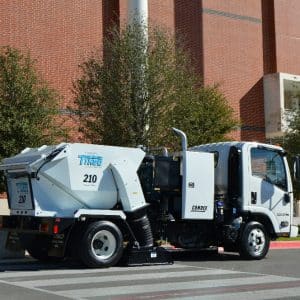

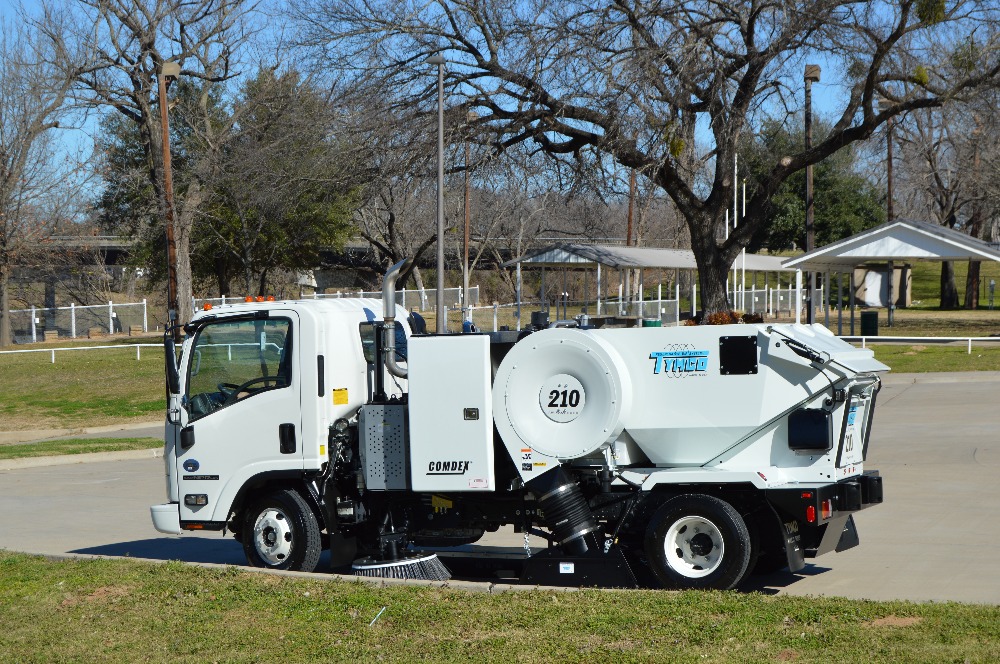

COMDEX®

A large 39.5 cubic foot storage box with optional extra water capacities, access to truck batteries, and easy access for brooms, shovels, rakes and additional tools that might be needed while sweeping heavily landscaped parking areas.

(Available on the Isuzu cabover chassis only)

View Brochure

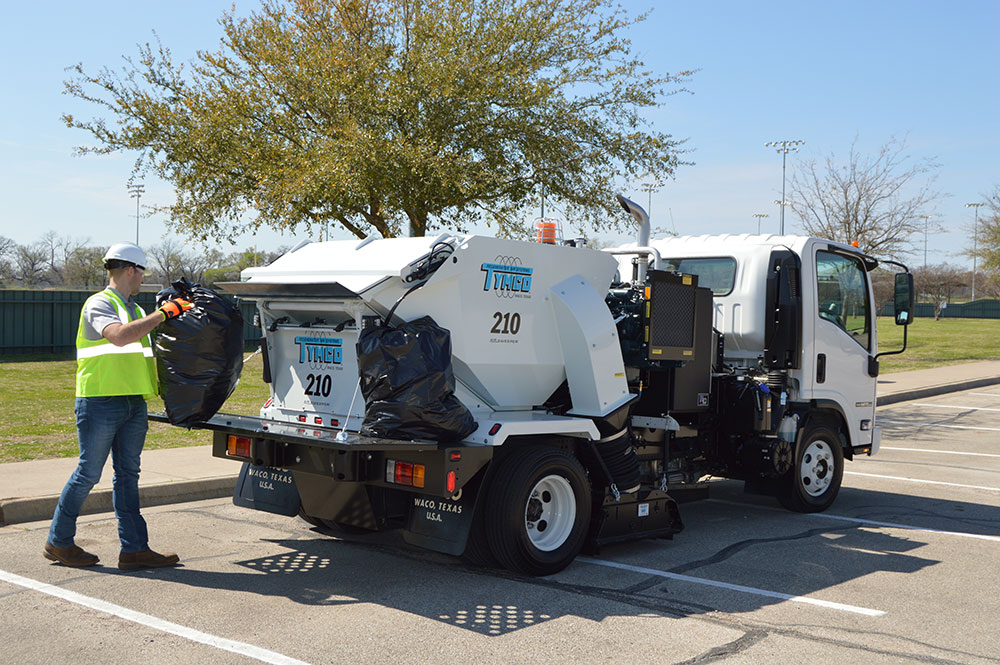

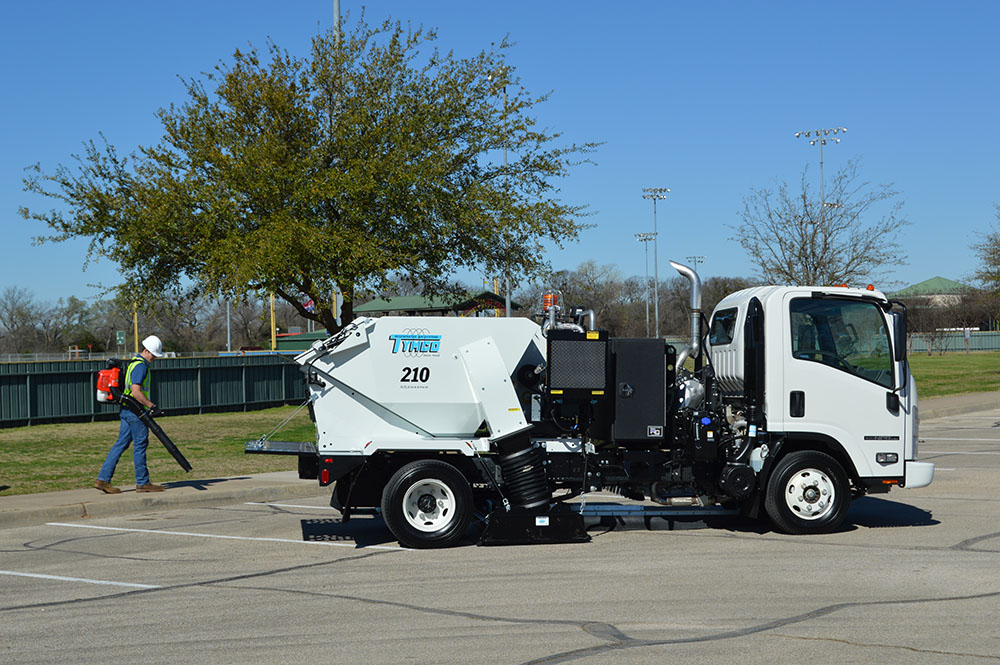

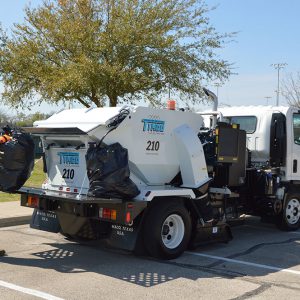

Backpack Blower Storage Box

Every parking lot has sidewalks that need to be cleaned. This storage box provides a place for the Model 210 operator to store a backpack blower to clean off sidewalks before sweeping the lot.

Stainless Steel Hopper

For maximum corrosion and salt spray resistance, all hopper body sheets as well as the hopper screen are fabricated with low carbon, high chrome stainless steel. Stainless steel bolt-on blower housing, dust separator and hopper drain are also available.

Dual Steering

Allows the Sweeper to be driven and operated from the right side (or passenger side) as well as the left side for easier and more efficient sweeping of the right hand gutter area.

(Available on the Isuzu cabover chassis only)

Pick-Up Head Curtain Lifter

Hydraulic actuated and retractable roller assembly that provides the pick-up head with the ability to sweep large volume of light debris. Electronically controlled in cab.

(Available on the Isuzu cabover chassis only)

Parking Lot Sweeping & The Environment


The Model 210 has several environmental benefits, features, and options including:

  • Doing More With Less
  • Water Efficiency
  • South Coast AQMD Rule 1186 Certification

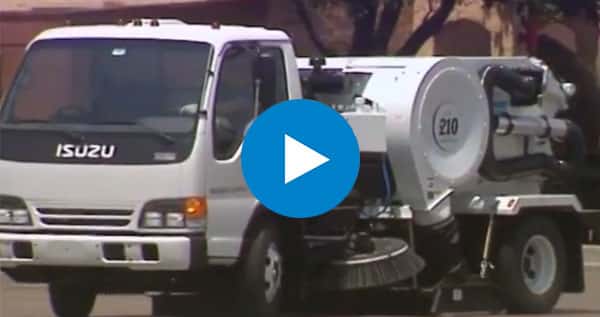

Video Gallery


Model 210® Regenerative Air Sweeper®


Tier 4 Interim Auxiliary Engine/Cabover Chassis

Specs

Sweeper Auxiliary Engine

  • Engine - Kubota V2403-M-T, 4 cyl. (Tier 4i)
  • Displacement - 148.5 in3 (2.4 L)
  • Power - 56 hp (41.7 kW) @ 2600 RPM
  • Net torque - 121 lb-ft (164 Nm) @ 1800 RPM
  • Air cleaner - Heavy duty, w/ pre-cleaner
  • Oil filter - Spin on, full flow
  • Cooling - Liquid
  • On diesel chassis, diesel auxiliary engine fuel is supplied from chassis fuel tank.
    • Fuel tank capacity (shared) - 30 gal (113 L)
  • On gasoline chassis, diesel auxiliary engine fuel is supplied from a separate fuel tank.
    • Aux. engine fuel tank capacity - 19 gal (72 L)
  • Auxiliary engine shutdown system
  • Fuel/water separator

Blower

  • Aluminum alloy high volume, open face turbine
  • Purpose - Creates air blast and suction
  • Bearings - Anti-friction
  • Housing - Abrasion resistant, replaceable liner
  • Drive - Heavy duty power band

Dust Separator

  • Type - Cyclonic, multipass, centrifugal separation
  • Cylindrical area - 20 x 22.5 in (508 x 1549 mm)
  • Location - Adjacent to hopper
  • Particulate removal achieved through 22.5 in (572 mm) skimmer slot into skimmer hood
  • Inspection/cleanout port w/extended plug handle

Hopper

  • Capacity (volumetric) - 2.4 yd3 (1.83 m3)
  • Capacity (useable) - 2.1 yd3 (1.61 m3)
  • Construction - Welded steel plate
  • Dump door size - 52 x 23 in (1321 x 584 mm)
  • Dumping method - Hydraulic with tilt up
  • Dumping height - 60 in (1524 mm)
  • Dumping clearance height - 144 in (3645 mm)

Pick-Up Head

  • Type - Dual chamber
  • Function - Delivers air blast and suction
  • Width (inside dimension) - 78 in (1981 mm)
  • Head area - 2028 in2 (1.31 m2)
  • Suspension - 4 springs, 2 drag links
  • Skids - DUO-SKID®, long life carbide
  • Suction hose diameter - 12 in (305 mm)
  • Pressure hose diameter - 12 in (305 mm)
  • Pressure bleeder - Integral for leaf/light material pickup
  • Reverse pick-up head system

Hydraulic System

  • Operates gutter broom(s), dump door and pick-up head
  • Drive - Gear driven from auxiliary engine
  • Capacity - 5 GPM (18.925 LPM)
  • Reservoir - 8 gal. (30.3 L) w/ 80 mesh suction strainer, sight/temperature gauge
  • Filter - 10 micron in-line
  • Hydraulic oil - Extended life

Gutter Broom, Left, Patented

  • Standard equipment includes floodlight and parabolic mirror
  • Drive - Constant speed non-reversible hydraulic motor
  • Adjustment - Adjustable for down pressure, pattern and wear
  • Down pressure - Automatically adjusts to requirement
  • Flexibility - All directions, Integral anti-damage "swing away" relief valve
  • Broom - Poly wafer 36 in (914 mm)

Controls

  • Inside cab (lighted)
    Pick-up head, gutter broom(s), ignition and tachometer (auxiliary engine), voltmeter, low water warning system (for optional dust control system), safety lights, hour meter, pressure bleeder
  • Outside cab - Dump

Safety / Warning Devices

  • Back-up alarm
  • Alternating LED rear flashers (2)
  • Hopper safety prop

Optional Equipment

  • Abrasion protection package
  • Air purge, dust control system
  • Amber beacon light, LED
  • Auto Sweep Interrupt (ASI)
  • Auxiliary engine - gasoline (consult factory)
  • Auxiliary fuse panel
  • Auxiliary hand hose 6 in dia. (152 mm)
  • Backpack blower storage box
  • Cabover dual steering
  • Cabover storage box (Not Available with COMDEX)
  • Camera/monitor system
  • Dust control system - 30 gal (113 L)
    • COMDEX water - up to 102.5 gal (388 L)
    • Hi/Low pressure washdown system (COMDEX water required)
  • Gutter broom(s) - Right (in lieu of left) or twin
    • Broom - Poly or steel wire digger 32 in (812.8 mm)
  • Gutter broom tilt adjuster(s) (left, right, or twin)
  • Hopper drain system
  • Hopper slide-out screen
  • Hopper up alarm
  • Light bar, cab mounted, LED
  • Linear actuator - pressure bleeder with gauge
  • Low emissions package (required for South Coast AQMD Rule 1186, not applicable with high output water system)
  • Magnet, front bumper mounted, light duty
  • Rubber lined blower
  • Sound Reduction Engineering (SRE®)
  • Stainless steel options:
    • Hopper:
      -Hopper weldment
      -Hopper door
      -Inspection door
      -Skimmer hood
      -Slide-out hopper screen
    • Blower housing
    • Dust separator
    • Hopper drain
    • Hopper Inspection door
    • Hopper screen
    • Auxiliary hand hose hardware
  • Paint color (other than TYMCO standard white)

Special options are available for your individual requirements. Contact your local dealer or TYMCO.

Cabover Chassis Available

  • Isuzu NPR-HD - Diesel
  • Isuzu NPR-HD - Gasoline
  • Isuzu NPR - Gasoline

Updated: 08/21/2017

Tier 4 Interim Auxiliary Engine/Conventional Cab Chassis

Specs

Sweeper Auxiliary Engine

  • Engine - Kubota V2403-M-T, 4 cyl. (Tier 4i)
  • Displacement - 148.5 in3 (2.4 L)
  • Power - 56 hp (41.7 kW) @ 2600 RPM
  • Net torque - 121 lb-ft (164 Nm) @ 1800 RPM
  • Air cleaner - Heavy duty, w/ pre-cleaner
  • Oil filter - Spin on, full flow
  • Cooling - Liquid
  • Diesel auxiliary engine fuel tank independent from diesel or gasoline chassis fuel tank
  • Aux. engine fuel tank capacity - 19 gal (72 L)
  • Auxiliary engine shutdown system
  • Fuel/water separator

Blower

  • Aluminum alloy, high volume, open face turbine
  • Purpose - Creates air blast and suction
  • Bearings - Anti-friction
  • Housing - Abrasion resistent, replaceable liner
  • Drive - Heavy duty power band

Dust Separator

  • Type - Cyclonic, multipass, centrifugal separation
  • Cylindrical area - 20 x 22.5 in (508mm x 1549mm)
  • Location - Adjacent to hopper
  • Particulate removal achieved through 22.5 in (572 mm) skinner slot into skimmer hood
  • Inspection/cleanout port w/extended plug handle

Hopper

  • Capacity (volumetric) - 2.4 yd3 (1.83 m3)
  • Capacity (useable) - 2.1 yd3 (1.61 m3)
  • Construction - Welded steel plate
  • Dump door - 52 x 23 in (1321 mm x 584 mm)
  • Dumping method - Hydraulic with tilt up
  • Dumping height - 60 in (1524 mm)
  • Dumping clearance height - 144 in (3645 mm)

Pick-up head

  • Type - Dual chamber
  • Function - Delivers air blast and suction
  • Width (inside dimension)- 78 in (1981 mm)
  • Pick-up head area - 2028 in2 (1.31 m2)
  • Suspension - 4 springs, 2 drag links
  • Skids - DUO-SKID®, long life carbide
  • Suction hose diameter - 12 in diameter (305 mm)
  • Pressure hose diameter - 12 in diameter (305 mm)
  • Pressure bleeder - Integral for leaf/light material pickup
  • Reverse pick-up head system

Hydraulic System

  • Operates gutter broom(s), dump door and pick-up head
  • Drive - Gear driven from auxiliary engine
  • Capacity - 5 GPM (18.925 LPM)
  • Reservoir - 8 gal. (30.3 L) w/ 80 mesh suction strainer, sight / temperature gauge
  • Filter - 10 micron in-line
  • Hydraulic oil - Extended life

Gutter Broom, Left, Patented

  • Standard equipment includes floodlight and parabolic mirror
  • Drive - Constant speed non-reversible hydraulic motor
  • Adjustment - Adjustable for down pressure, pattern and wear
  • Down pressure - Automatically adjusts to requirement
  • Flexibility - All directions, Integral anti-damage "swing away" relief valve
  • Broom - Poly wafer 36 in (914 mm)

Controls

  • Inside cab (lighted)
    Pick-up head, gutter broom(s), ignition and tachometer (auxiliary engine), voltmeter, low water warning system (for optional dust control system), safety lights, hour meter, pressure bleeder
  • Outside cab - Dump

Safety / Warning Devices

  • Back-up alarm
  • Alternating LED rear flashers (2)
  • Hopper safety prop

Optional Equipment

  • Abrasion protection package
  • Air purge, dust control system
  • Amber beacon light, LED
  • Auto Sweep Interrupt (ASI)
  • Auxiliary engine - gasoline (consult factory)
  • Auxiliary fuse panel
  • Auxiliary hand hose 6 in dia. (152 mm)
  • Backpack blower storage box
  • Camera/monitor system
  • Dust control system - 30 gal (113 L)
  • Gutter broom(s) - Right (in lieu of left) or twin
    • Broom - Poly or steel wire digger 32 in (812.8 mm) (Ford F-450 only)
  • Hopper drain system
  • Hopper slide-out screen
  • Hopper up alarm
  • Light bar, cab mounted, LED
  • Linear actuator - pressure bleeder with gauge
  • Low emissions package (required for South Coast AQMD Rule 1186, not applicable with high output water system)
  • Magnet, front bumper mounted, light duty
  • Rubber lined blower
  • Sound Reduction Engineering (SRE®)
  • Stainless steel options:
    • Hopper:
      -Hopper weldment
      -Hopper door
      -Inspection door
      -Skimmer hood
      -Slide-out hopper screen
    • Blower housing
    • Dust separator
    • Hopper Inspection door
    • Hopper drain
    • Hopper screen
    • Auxiliary hand hose hardware
  • Paint color (other than TYMCO standard white)

Special options are available for your individual requirements. Contact your local dealer or TYMCO.

Conventional Cab Chassis Available

  • Ford F-450
  • Ford F-350
  • Chevrolet C3500-HD

Updated: 08/21/2017
